2C inflatable packer TPE 82
for borehole-Ø 82-158 mm

950 mm inflation hose length, mixing unit, non-return valve, connection thread for material hose component A: M16x1.5; component B: M14x1.5, rinsing pump 2x M12x1.5; connecting thread for expansion line inside M10x1
Einsatzmaterial
  • acrylate gel
  • micro cement
  • 1C injection resin
  • silicate resin
  • polyurethane
  • aqueous solution
  • 2C injection resin
  • injection mortar
  • cement paste
  • cement suspension
  • insulating material
  • water
  • 2C polyurethane
Technische Daten
Type 2C-TPE 82
Borehole Ø min.-max. 82-158 mm
Borehole Ø 86 mm max. expansion pressure 145 bar, max. injection pressure 130 bar
Borehole Ø 100 mm max. expansion pressure 115 bar, max. injection pressure 100 bar
Borehole Ø 120 mm max. expansion pressure 75 bar, max. injection pressure 55 bar
Borehole Ø 135 mm max. expansion pressure 60 bar, max. injection pressure 40 bar
Borehole Ø 139 mm max. expansion pressure 50 bar, max. injection pressure 30 bar
Borehole Ø 145 mm max. expansion pressure 45 bar, max. injection pressure 25 bar
Borehole Ø 155 mm max. expansion pressure 40 bar, max. injection pressure 20 bar
Inflation hose length 950 mm
Free passage Ø (injection tube) inside 9 mm
Connection thread for material hose outside comp. A M16x1.5
Connection thread for material hose outside comp. B M14x1.5
Connection thread for material hose outside rinsing pump 2 x M12x1.5
Connection thread for expasion line inside M10x1
Weight 16.14 kg
Total length 1.890 mm
Securing cord eye

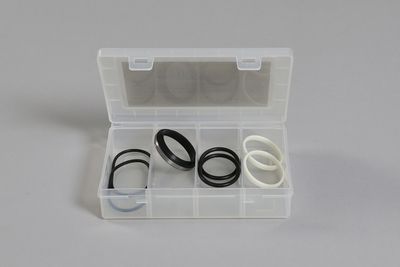

Zubehör
