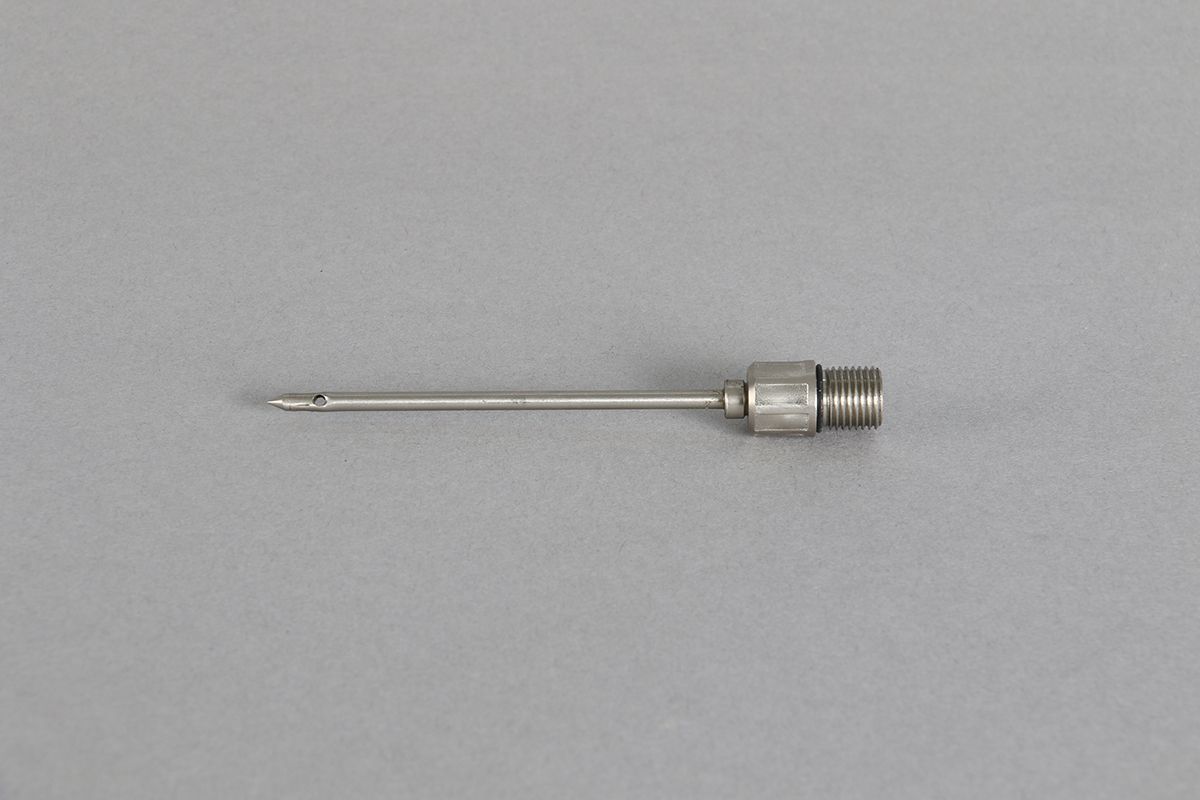

B-STING® joint injection needle
Ø 4 x 95 mm

Video - Activation

stainless steel, outlet openings lateral Ø 2.5 mm, external thread M10x1, check valve, opening pressure 10-12 bar, o-ring
Vorteil/Hinweis
  • For further information on the process technology with the DESOI joint injection needle B-STING®, please refer to the STUVA ABI leaflet "Sealing of structures by injection", 4th edition - Part I/5.2.6 from p. 18.
  • No drilling through reinforced concrete
  • The B-STING joint injection needle penetrates the sealing element without removing any material
  • No material removal = no leaks
Einsatzmaterial
  • acrylate gel
  • 1C injection resin
  • polyurethane
  • 2C injection resin
  • 2C polyurethane
