DESOI M-Power 601Z

suction system, manometer 0 - 25 bar, incl. instruction manual, No. 10913: Material hose (Ø 13 mm, 3 m long; detachable double nipple R1/2"), No. 10920: Quick snap (LP ball valve R1/2", max. 40 bar, free passage Ø 9 mm; detachable double nipple R1/2"), No. 21232: LP ball valve R1/2" (max. 40 bar, mouth piece; detachable double nipple R1/2")
Vorteil/Hinweis

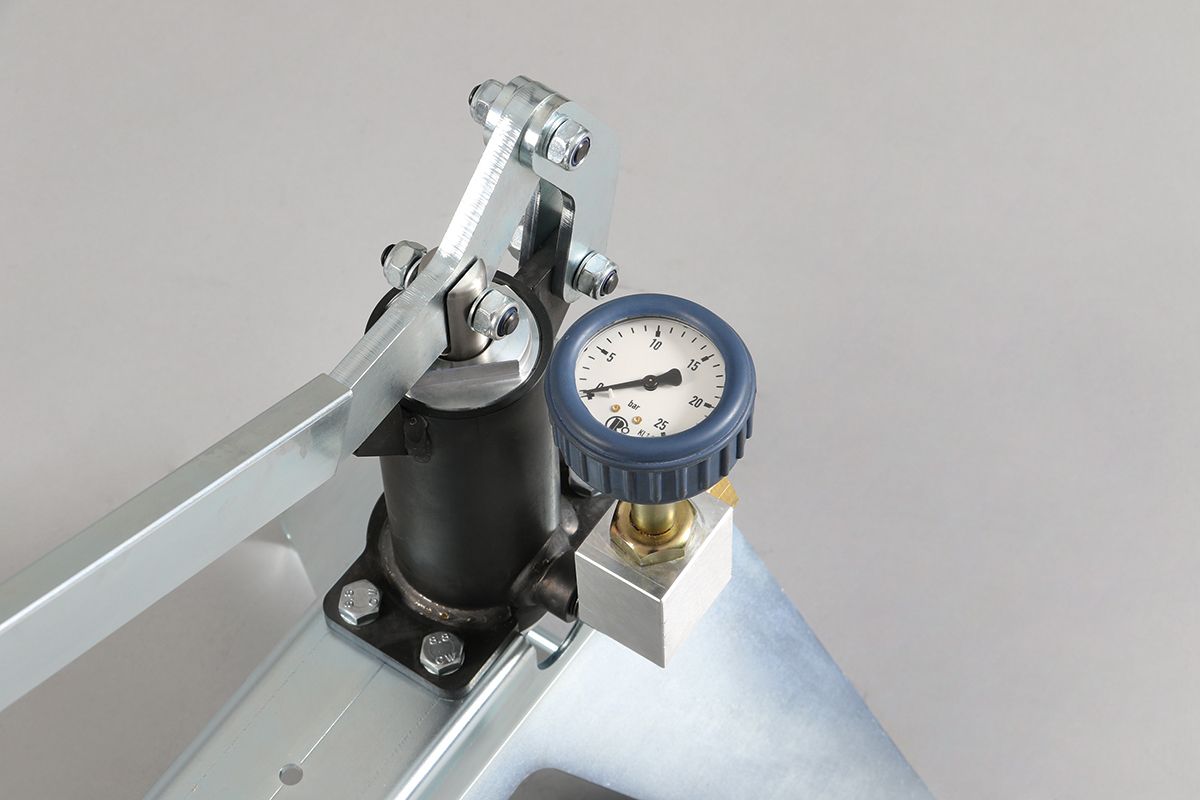

  • Manometer for pressure control
  • Big material passages - high delivery
  • Space-saving transport - collapsible
Einsatzmaterial
  • aqueous solution
  • injection mortar
  • cement paste
  • cement suspension
Technische Daten
Working pressure - acc. to compressive force 0 - 20 bar
Delivery rate 150 ml/stroke
Grain size max. 0,3 mm
Weight 16 kg
L x W x H 80 x 40 x 65 cm
L x W x H - transport 80 x 40 x 50 cm
Produktbeschreibung

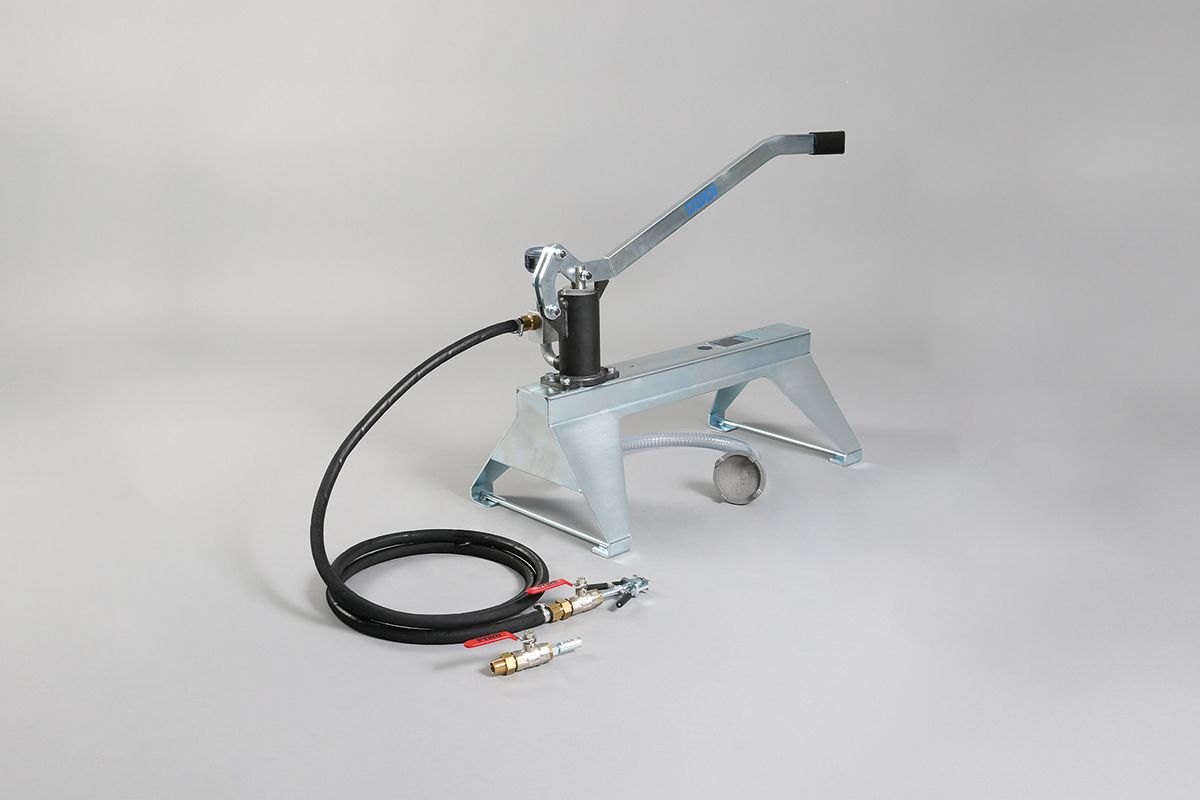

The handy and compact manual reciprocating pump DESOI M-Power 601Z is efficient and suitable for quick service on site. The ready-mixed material is sucked directly out of the mixing container.
