DESOI PowerInject 303 GO VA

moving device, manometer 0 - 250 bar, 6 litre material container transparent with scale and cover, incl. instruction manual, No. 17729: HP hose - stainless steel Ø 6 mm, 5 m, union nuts M12x1.5 (solvent resistant), No. 16733: HP injection gun (external thread M12x1.5, whip 0.3 m, 0 - 250 bar, mouth piece)
Vorteil/Hinweis
  • Exact adjustment of pressure
  • Big membrane area - low wearing
  • Valve technique - also suitable for highly viscous material
  • Can also be used for spraying
  • Big material passages - high delivery
Einsatzmaterial
  • epoxy resin
  • polyurethane
  • quick-foaming polyurethane
  • aqueous solution
Technische Daten
Supply 230 V/50 Hz
Motor power 0.37 kW
Working pressure - infinitely variable 5 - 200 bar
Delivery rate max. 1.9 l/min
Weight 23 kg
L x W x H 48 x 43 x 75 cm
Produktbeschreibung

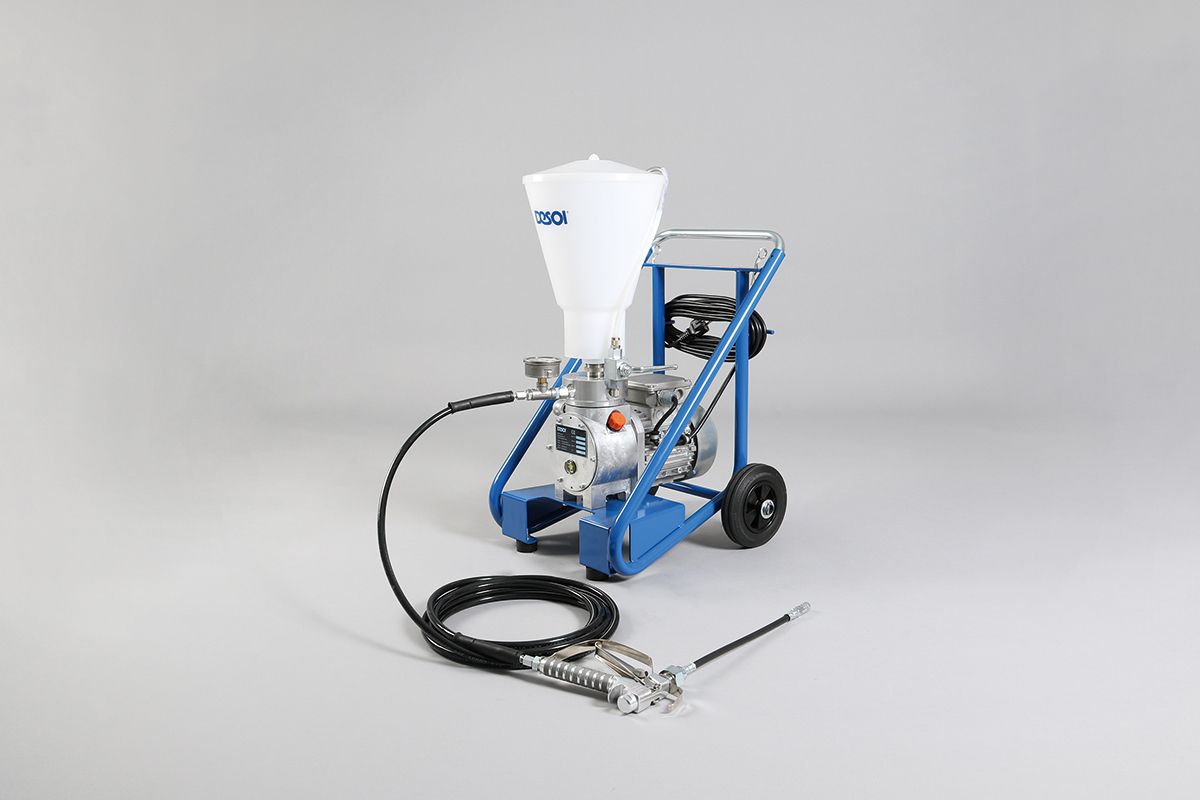

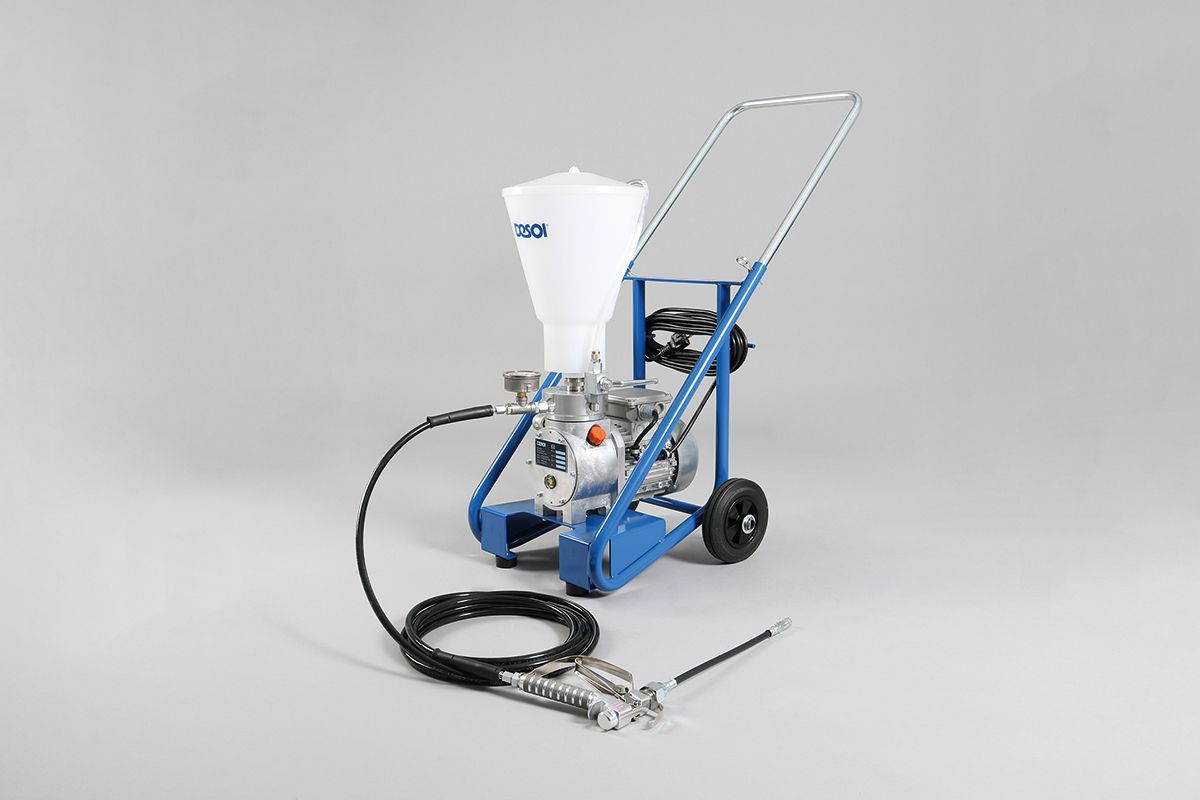

The compact, robust and powerful membrane pump DESOI PowerInject 303 GO VA is designed for the professional service on site. The special feature of the membrane pump is the large surface of the membrane and the large dimensions of the suction valve that makes the suction of highly viscous material easier. The pump is equipped with a return hose with ball valve which relieves the pressure in the the pump and the material hose. All material conducting parts are made of stainless steel.
