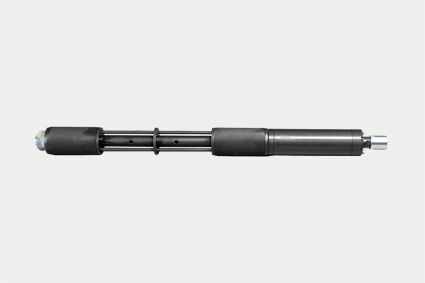

Hydraulic double packer HPD 101
borehole-Ø 101 - 109 mm

2 clamping rubbers each 150 mm long, connection material hose internal thread G1", hydraulic connection 2 x internal thread M8x1, double-acting clamping cylinder, free passage Ø 25 mm
Vorteil/Hinweis
  • Reusable
  • Can be used in different depths
  • Easy clamping
  • Easy and safe sealing
  • All parts are easily exchangeable and available as spare parts
Einsatzmaterial
  • acrylate gel
  • micro cement
  • 1C injection resin
  • silicate resin
  • 2C injection resin
  • cement paste
  • cement suspension
  • 2C polyurethane
Technische Daten
Type HPD 101
Clamping rubber 2 x Ø 98 x 150 mm
Clamping rubber (clamped) Ø 111 mm
Borehole Ø min.-max. 101-109 mm
Injection area 333 mm
Length total 1,065 mm
Connection material hose internal thread G1"
Hydraulic connection 2 x internal thread M8x1
Max. working pressure 250 bar
Clampng cylinder double-acting
Produktbeschreibung
The hydraulic double packer is mainly used for injection, e.g. with sleeve tubes. The hydraulic double packer can be inserted easily into the sleeve tubes. Reliable sealing will be achieved in clamped position. By the simple and sure application an effective injection will be enabled.
