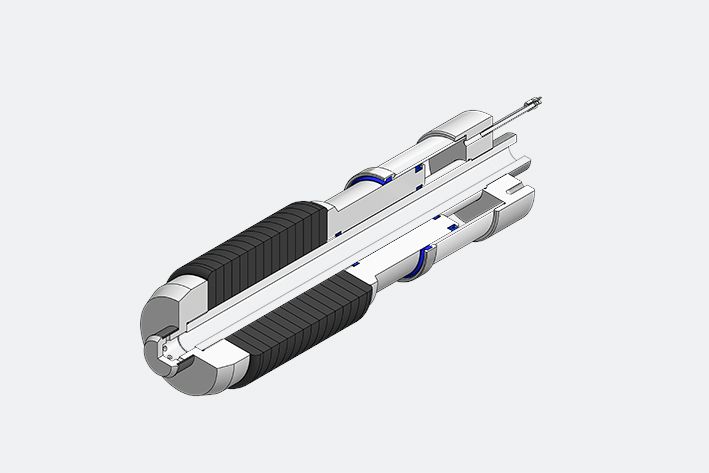

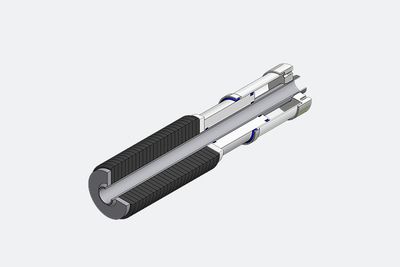

Hydraulic single packer HPE 167
borehole-Ø 167 - 195 mm

clamping rubber Ø 162 x 300 mm, hydraulic connection external thread M10x1, single-acting clamping cylinder, connection material hose external thread M56x2-LH
Vorteil/Hinweis
  • Reusable
  • Can be used in different depths
  • Easy clamping
  • Easy and safe sealing
  • All parts are easily exchangeable and available as spare parts
  • Easy cutting because many parts are made of polymer (cylinder tube made of aluminium)
Einsatzmaterial
  • acrylate gel
  • micro cement
  • 1C injection resin
  • silicate resin
  • 2C injection resin
  • cement paste
  • cement suspension
  • 2C polyurethane
Technische Daten
Type HPE 167
Clamping rubber Ø 162 x 300 mm
Clamping rubber (clamped) Ø 205 mm
Borehole Ø min.-max. 167-195 mm
Length total 677 mm
Connection material hose external thread M56x2-LH
Hydraulic connection internal thread M10x1
Max. working pressure 100 bar
Clampng cylinder single-acting
Weight 14 kg
