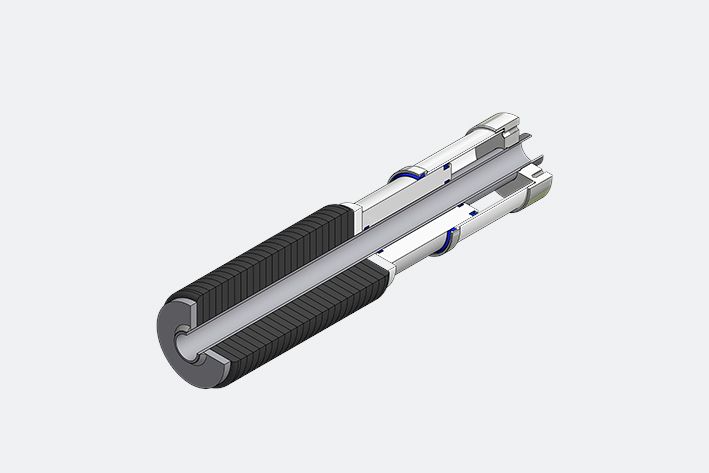

Hydraulic single packer HPE 170
borehole-Ø 170 - 200 mm

clamping rubber Ø 165 x 500 mm, hydraulic connection internal thread G1/4", single-acting clamping cylinder, material hose external thread G2"
Vorteil/Hinweis
  • Reusable
  • Can be used in different depths
  • Easy clamping
  • Easy and safe sealing
  • All parts are easily exchangeable and available as spare parts
  • Easy cutting because many parts are made of polymer (cylinder tube made of aluminium)
Einsatzmaterial
  • acrylate gel
  • micro cement
  • 1C injection resin
  • silicate resin
  • 2C injection resin
  • cement paste
  • cement suspension
  • 2C polyurethane
Technische Daten
Type HPE 170
Clamping rubber Ø 165 x 500 mm
Clamping rubber (clamped) Ø 210 mm
Borehole Ø min.-max. 170-200 mm
Length total 825 mm
Connection material hose external thread G2"
Hydraulic connection internal thread G1/4"
Max. working pressure 100 bar
Clampng cylinder single-acting
Weight 24 kg
