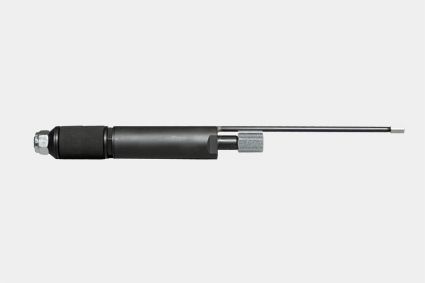

Hydraulic single packer HPE 26
borehole-Ø 26 - 29 mm

Vorteil/Hinweis
  • Reusable
  • Can be used in different depths
  • Easy clamping
  • Easy and safe sealing
  • All parts are easily exchangeable and available as spare parts
Einsatzmaterial
  • acrylate gel
  • 1C injection resin
  • silicate resin
  • 2C injection resin
  • cement suspension
  • 2C polyurethane
Technische Daten
Type HPE 26
Clamping rubber Ø 24 x 40 mm
Clamping rubber (clamped) Ø 30 mm
Borehole Ø min.-max. 26-29 mm
Length total 400 mm
Connection material hose external thread M9x1
Hydraulic connection internal thread M5
Max. working pressure 250 bar
Clampng cylinder single-acting
Produktbeschreibung
The hydraulic single packer is mainly used for injection, e.g. with sleeve tubes. The hydraulic single packer can be inserted easily into the sleeve tubes. Reliable sealing will be achieved in clamped position. By the simple and sure application an effective injection will be enabled.
